/ PV+Battery Energy Storage System

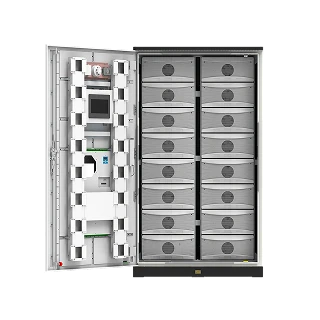

HC-UPSAP80I PV Energy Storage All-in-one Cabinet
HC-UPSAP80I is an indoor PV energy storage all-in-one cabinet featuring compact design, safe operation and efficient energy management, suitable for villas and small C&I applications with flexible deployment.
- Compact indoor all-in-one design
- Safe and reliable energy operation
- Suitable for villas and small C&I use
/ SPECIFICATIONS
HC-UPSAP80I PV Energy Storage Cabinet Specifications
HC-UPSAP80I features a compact indoor all-in-one PV and battery storage design, enabling stable energy conversion, efficient space utilization and reliable power management for villas and small C&I applications.
Product Model
HC-UPSSP1205
500kW/1205kWh
Product Model
HC-UPSAP80
30kW/80.384kWh
Grid Side(Output)
Rated Output Power
30kW
Max. Output Power
30kVA
Rated Output Current
45.6A/43.3A
Max.Output Current
45.6A/43.3A
Rated Voltage
400V
Voltage Range
-15%~20%
Connection Type
3P4L+PE
Rate Frequency
50/60Hz
Power Factor
0.8（Leading）~0.8（Lagging）
THDi
＜3%（Rated Power）
Grid Side (Input)
Max. AC Passthrough Current
91.2A/86.6A
Rated Input Voltage
3P4L+PE,220/230V,380/400V
Rated Input Frequency
50Hz/60Hz
GEN Side
Max. Input Power
30kW
Rated Input Current
45.6A/43.3A
Rated Input Voltage
3P4L+PE,220/230V,380/400V
Rated Input Frequency
50Hz/60Hz
Back-up Side
Rated Output Power
30kW
Max. Apparent Output Power
1.6 times of rated Power(2S)
Back-up Switch Time
<10ms
Rated Output Voltage
3P4L+PE,220/230V,380/400V
Rated Frequency
50Hz/60Hz
Rated. Output Current
45.6A/43.3A
Max. Imbalance Power Per Phase
33% rated Power
THDv(@linear load)
<2%
PV
Max Usable PV Input Power
60kW
Recommended Max PV Array Size
60kW
Max. Input Voltage
1000V
Rated Voltage
600V
Start-up Voltage
180V
MPPT Voltage Range
150V~850V
Full Load MPPT Voltage Range
360V~850V
Max. Input Current
40A/40A/40A/40A
Max. Short Circuit Current
60A/60A/60A/60A
MPPT Number/Max Input Strings Number
3/6
Max Input Power Per MPPT
18kW
Battery
Cell Type
LiFePO4
Battery Cell
3.2V/314Ah
Pack Configuration
16S1P（16.0768kWh）
System Configuration
16S1P*5
Rated Voltage
256V
Voltage Range
224V~280V
Voltage Range Compatible With Hybrid
150V~800V
Rated Charge/Discharge C-rate
0.5CP
Max. Charge/Discharge Power
33kW
Max. Charge/Discharge Current
70A*2
Cell Cycle Life
≥8000
Cycles（80%SOH@Standard Cycle）
System
RTE
≥85%
Cooling Method
Air Cooling
IP Rating
IP54
Operating Temperature
-20~50℃（>45℃ Derating）
Anti-corrosion Rating
C3-M
Altitude
2000m
Operating Humidity
5~95%RH（Non-condensing）
Fire Suppression Agent
Aerosol / FK-5-1-12
Conmmunication
CAN / RS485 / WiFi / Ethernet
/ DESCRIPTION
HC-UPSAP80I PV Energy Storage Cabinet Description
HC-UPSAP80I is an indoor PV and battery storage all-in-one cabinet designed for compact installation, safe operation and efficient energy use, supporting villas and small C&I power applications.
HC-UPSAP80I PV Energy Storage Cabinet Function
HC-UPSAP80I manages PV generation, battery charging and load supply through intelligent control, ensuring stable energy balance, optimized consumption and reliable indoor power delivery.
Energy Control
HC-UPSAP80I coordinates PV generation, battery charging and load supply through intelligent control, ensuring stable indoor energy balance and efficient power utilization.
Battery Management
Monitors battery status in real time, controlling charge and discharge cycles to ensure safe operation, improved efficiency and extended battery life.
Power Regulation
Adjusts energy output based on demand and PV availability, maintaining stable operation and reducing peak load impact for residential and small C&I systems.
Load Support
Provides continuous power support during grid fluctuation or peak demand, ensuring reliable electricity supply for villas and small commercial applications.
HC-UPSAP80I PV Energy Storage Cabinet Advantage
HC-UPSAP80I offers a compact indoor all-in-one design with simplified installation, safe operation and efficient energy utilization, improving space efficiency and reliable power use for villas and small C&I systems.
- Compact Indoor Design：Space-saving structure for indoor installation
- Safe Energy Operation：Ensures stable and secure system performance
- Easy Installation Setup：Simplifies deployment and reduces installation time
- Efficient Energy Use：Optimizes PV and battery energy utilization
/ SUPPORT
HC-UPSAP80I PV Energy Storage Cabinet Service Support
HC-UPSAP80I service support includes remote monitoring, system diagnostics and preventive maintenance, ensuring safe indoor operation, fast fault response and long-term reliable energy performance.
Remote Monitoring
Provides real-time system monitoring with data tracking and alerts, ensuring safe operation and early fault detection for reliable indoor energy performance.
System Diagnostics
Enables intelligent fault analysis and system health assessment, helping quickly identify issues and maintain stable energy storage operation.
Preventive Maintenance
Offers scheduled maintenance and inspection services to reduce risks, improve system reliability and extend equipment lifespan.
Fast Response Support
Delivers rapid technical support and troubleshooting to minimize downtime and ensure continuous and stable power supply.
/ APPLICATION
HC-UPSAP80I PV Energy Storage Cabinet Applications
HC-UPSAP80I is applied in villas and small C&I systems for backup power, PV self-consumption, load management and stable indoor energy supply.
Villa Backup Power
Provides reliable backup power for villas, ensuring continuous electricity supply during grid outages and enhancing household energy security.
PV Self-Consumption
Load Management
Small C&I Use
Energy Optimization
Improves overall energy efficiency by coordinating PV generation, battery storage and load demand for smarter indoor energy management
/ Certifications
HC-UPSAP80I PV Energy Storage Cabinet Quality Certifications
HC-UPSAP80I complies with IEC, CE and UN38.3 standards, ensuring electrical safety, indoor deployment reliability and international certification readiness.
QUALITY MANAGEMENT SYSTEM CERTIFICATE
CERTIFICATE of CONFORMITY
UN38.3 TEST REPORT
CERTIFICATE of CONFORMITY
MATERIAL SAFETY DATA SHEETS
TEST REPORT
/ VIDEO
HC-UPSAP80I PV Energy Storage Cabinet Video
Watch HC-UPSAP80I video to explore indoor PV and battery storage operation, showing system integration, energy management and stable residential performance.
