/ Energy Storage Cabinet

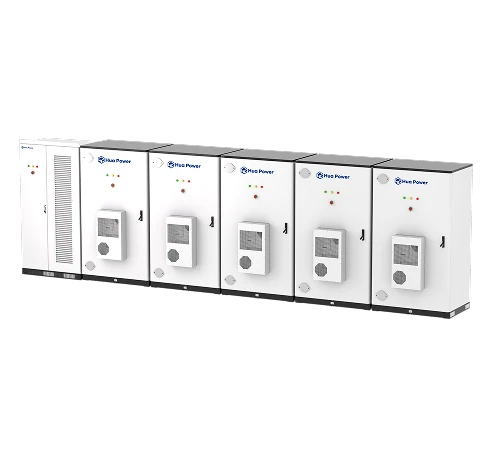

HC-UPSSP1205 Battery Storage System Split Cabinet

HC-UPSSP1205 is a split-type air-cooled energy storage system designed for commercial and industrial applications, delivering stable power output, flexible deployment, and scalable capacity for evolving energy demands.

Stable power output for C&I energy use

Split design enables flexible deployment

Peak shaving and backup power support

/ SPECIFICATIONS

HC-UPSSP1205 Battery Storage System Split Cabinet Specifications

HC-UPSSP1205 delivers an air-cooled split energy storage system for C&I use, ensuring stable power output, flexible deployment, and scalable expansion to support peak shaving and backup power needs.

Product Model

HC-UPSSP1205

500kW/1205kWh

Product Model

HC-UPSSP1205

500kW/1205kWh

AC(On-grid)

Rated Power

500kW

Maximum Current

794A

Rated Voltage

400V

Wiring Method

3P4L+PE

Frequency

50Hz/60Hz

Power Factor

1 (Leading)~1 (Lagging)

THDi

<2% (Rated Power)

AC(Off-grid)

Rated Power

500kW

Rated Voltage

400A

Maximum Current

794V

Wiring Method

3P4L+PE

Frequency

50Hz/60Hz

THDu

<3% (Linear Load)

Battery

Cell Type

LiFePO4

Battery Cell

3.2V/314Ah

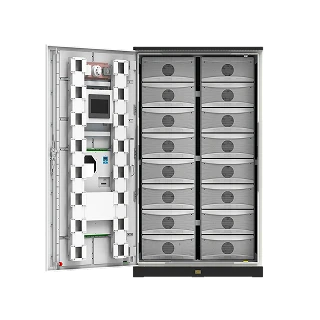

Battery Pack Configuration

1P16S

Battery Pack Quantity

15 Packs/Cluster

Battery Cluster Quantity

5 Clusters

Rated Current

157A*5

Voltage Range

648~864V

Rated Capacity

1205.76kWh

Maximum PV Input Voltage

1000V

Maximum PV Power

600kW/660kW/720kW

Number of MPPT Modules

10/11/12

MPPT Voltage Range

250V-850V

MPPT Full-Load Voltage Range

450V-850V

System

Weight

＜14T

Dimensions(W/D/H)

1200*1000*2125mm*5+1850*1100*2330mm

RTE

≥85%

Air Conditioning Power

2kW(Cooling),1.5kW(Heating)*5

Temperature

-20℃~50℃ (＞45℃ De-Rating)

Humidity

5%~95%RH (Non-Condensation)

IP Rating

IP54

Anti-corrosion Rating

Cooling Method

Air Cooling

Noise

≤75dB

Altitude

2000m

Display

HMI

Fire Suppression Agent

Aerosol / FK-5-1-12

Communication

CAN / RS485 / WiFi / Ethernet

/ DESCRIPTION

HC-UPSSP1205 Battery Storage System Split Cabinet Description

HC-UPSSP1205 is a split-type energy storage system for C&I applications, designed to deliver stable power output, flexible deployment, and reliable energy support for peak shaving and backup scenarios.

HC-UPSSP1205 Battery Storage System Split Cabinet Function

HC-UPSSP1205 optimizes energy flow by shifting loads during peak periods, stabilizing power output, and securing backup supply to ensure continuous and reliable operation across commercial and industrial applications.

Energy Dispatch Optimization

Expand storage capacity by adding battery modules as energy demand grows, providing a flexible solution for changing household power needs.

Stable Power Supply

Maintains consistent and reliable power delivery under varying operating conditions, ensuring continuous energy availability for critical commercial applications.

Peak Load Management

Supports peak load shifting to smooth energy demand fluctuations, reducing stress on the grid while improving system-wide energy utilization efficiency.

Backup Energy Security

Provides reliable backup energy support during grid interruptions, ensuring uninterrupted operation and improving overall energy resilience.

HC-UPSSP1205 Battery Storage System Split Cabinet Advantage

HC-UPSSP1205 delivers enhanced operational efficiency and energy utilization through coordinated system-level control, ensuring stable performance, flexible deployment, and improved reliability across commercial and industrial energy scenarios.

Stable and reliable power output

Flexible deployment for C&I sites

Efficient energy usage optimization

Enhanced operational resilience

/ SUPPORT

HC-UPSSP1205 Battery Storage System Split Cabinet Service Support

HC-UPSSP1205 offers end-to-end lifecycle service support, including installation guidance, remote monitoring, and preventive maintenance, ensuring long-term reliable operation of commercial and industrial energy storage systems.

Lifecycle Assurance

End-to-end lifecycle support ensures consistent system performance, from deployment to long-term operation, maintaining reliability across commercial and industrial applications.

Remote Intelligence

Real-time remote monitoring enables proactive diagnostics and performance visibility, helping optimize system operation and reduce downtime risk.

Preventive Care

Scheduled preventive maintenance improves system stability, extends equipment lifespan, and ensures continuous and efficient energy storage operation.

Fast Response Service

Responsive technical support provides timely assistance during system operation, ensuring rapid issue resolution and uninterrupted energy supply continuity.

/ APPLICATION

HC-UPSSP1205 Battery Storage System Split Cabinet Applications

HC-UPSSP1205 is suitable for C&I applications, supporting peak shaving, backup power, and renewable energy integration for efficient energy use.

Industrial Plants

Provides stable power for industrial plants enabling peak shaving backup supply and efficient energy management

Commercial Buildings

Provides energy support for commercial buildings optimizing peak load enhancing efficiency and backup power support

Data Centers

Ensures power supply for data centers with load balancing peak shaving and reliable backup power for critical operation

EV Charging

Supports EV charging stations with efficient energy delivery peak load management and stable backup power for reliable

Renewable Integration

Enables renewable integration with PV systems supporting energy shifting grid stability and utilization of clean power

/ Certifications

HC-UPSSP1205 Battery Storage System Split Cabinet Quality Certifications

HC-UPSSP1205 complies with international quality and safety standards, including IEC, UN38.3, and ISO certifications, ensuring safe, reliable, and globally recognized energy storage performance.
